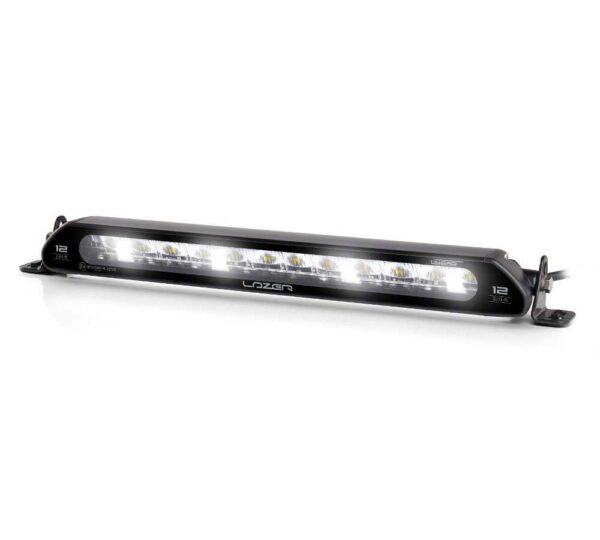

LAZER Linear-12 Elite with position light

395.00

Voltage Range 9-32V
LED Life 50,000 hours
Weight 800 gr
HIGH BEAM FUNCTION
Total Luminous Flux 8100 Lm
Number of High Output LEDs 24
Power Consumption 84 Watts
Current Draw (at 14.4V) 5.8 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 37.5
Position Light ECE R7
DIMENSIONS
Width 382 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 42 Degrees
0.25 lx Line 796 metres
0.5 lx Line 563 metres
1 lx Line 398 metres
3 lx Line 230 metres

Kirjeldus

Combination of highly efficient 3W ‘premium bin’ LEDs

Integrated position/side light functionality

Vacuum-metallised optics deliver wide spread of light

Flexible mounting options – anti-theft mounting brackets included

Sleek, low profile design facilitates installation

Electronic thermal management

‘Unbreakable’ polycarbonate lens

ECE approved for on-road use

IP67 watertight

5 year warranty

Supplied with male/female connectors (pre-wired)
