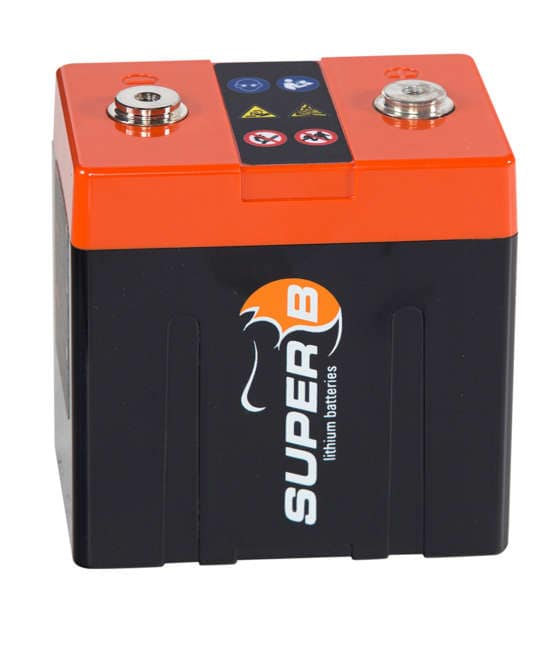

Super B Andrena 12V10Ah

525.00

Lightweight, high-performance, safe and reliable lithium power battery, especially developed for motorsports. This battery equals a lead-acid battery of 20 to 32Ah, provided the alternator’s maximum current doesn’t exceed the battery’s maximum charge current of 37A. Designed in a standard rally casing. Suitable for 12V systems and for use in extreme environments.
  • Nominal capacity 10Ah
  • Nominal voltage 12.8V
  • Dimensions (LxWxH) 120 x 82 x 124mm / 4.72” x 3.23” x 4.88”
  • Open circuit voltage 13.2V

Kirjeldus

ELECTRICAL SPECIFICATIONS
Nominal capacity 10Ah
Open circuit voltage 13.2V
Self-discharge <3% per month
Cycle life >1000 (at 10C discharge, 100% DoD)
EqPb (Equals Lead acid battery) 20 to 32Ah
Voltage 12V

MECHANICAL SPECIFICATIONS
Dimensions (LxWxH) 120 x 82 x 124mm / 4.72” x 3.23” x 4.88”
Weight 1.7 kg / 3.7 lbs
Case material PC – ABS
Ingress protection IP69
Cell type / Chemistry Cylindrical – LiFePO4

CHARGE & DISCHARGE SPECIFICATIONS
Charge method CCCV
Charge voltage 14.3V – 14.6V
Max. charge current 37A
End of discharge voltage 8V
Discharge current continuous 160A
Discharge pulse current 493A (49C) (1 sec)

TEMPERATURE SPECIFICATIONS
Charge temperature 0°C to 55°C / 32°F to 131°F
Discharge temperature -30°C to 55°C / -22°F to 131°F
Storage temperature -40°C to 60°C / -40°F to 140°F
