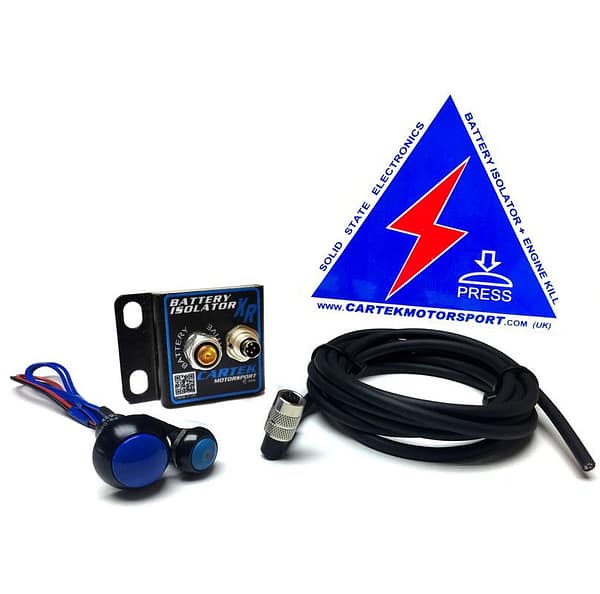

CARTEK XR elektrooniline peavoolulüliti

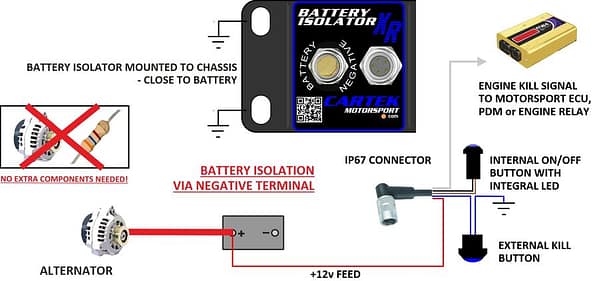

This unit does not have a power input or power output. Instead it sends a signal which is wired up to either a Power Distribution Module or Motorsport ECU that has an ignition switch signal input. The ECU or Power Distribution Module will then shut down when it see’s this signal – which then kills the engine.

The new Battery Isolator XR also features a 0.5 sec time delay between transmitting the engine kill signal and disconnecting the battery allowing ECUs time to perform a shutdown sequence before electrical power is lost.

INSTRUCTIONS
