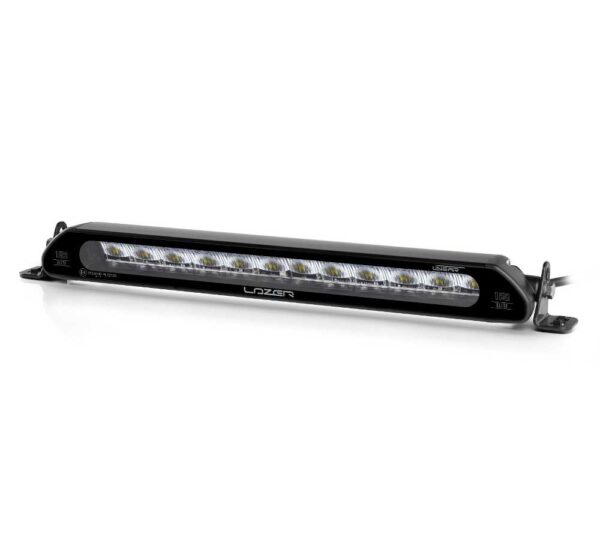

LAZER Linear-12 Elite
430.00 €
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 800 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8100 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 24 |
| Power Consumption | 84 Watts |
| Current Draw (at 14.4V) | 5.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 37.5 |
| DIMENSIONS | |
| Width | 382 mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 degrees |
| 0.25 lx Line | 796 metres |
| 0.5 lx Line | 563 metres |
| 1 lx Line | 398 metres |
| 3 lx Line | 230 metres |
Combination of highly efficient 3W ‘premium bin’ LEDs
Vacuum-metallised optics deliver wide spread of light
Flexible mounting options – anti-theft mounting brackets included
Sleek, low profile design facilitates installation
Electronic thermal management
‘Unbreakable’ and hardcoated polycarbonate lens*
Anodised aluminium heatsink provides for improved thermal dynamics (see Download section for Care Instructions)
ECE approved for on-road use
IP67 watertight
5 year warranty
Supplied with male/female connectors (pre-wired)
